Motor Technology
SKU : 6SM27-M-4000

6SM27-M-4000 brushless servomotor 0.3Nm, 4000rpm SEIDEL

£695.00

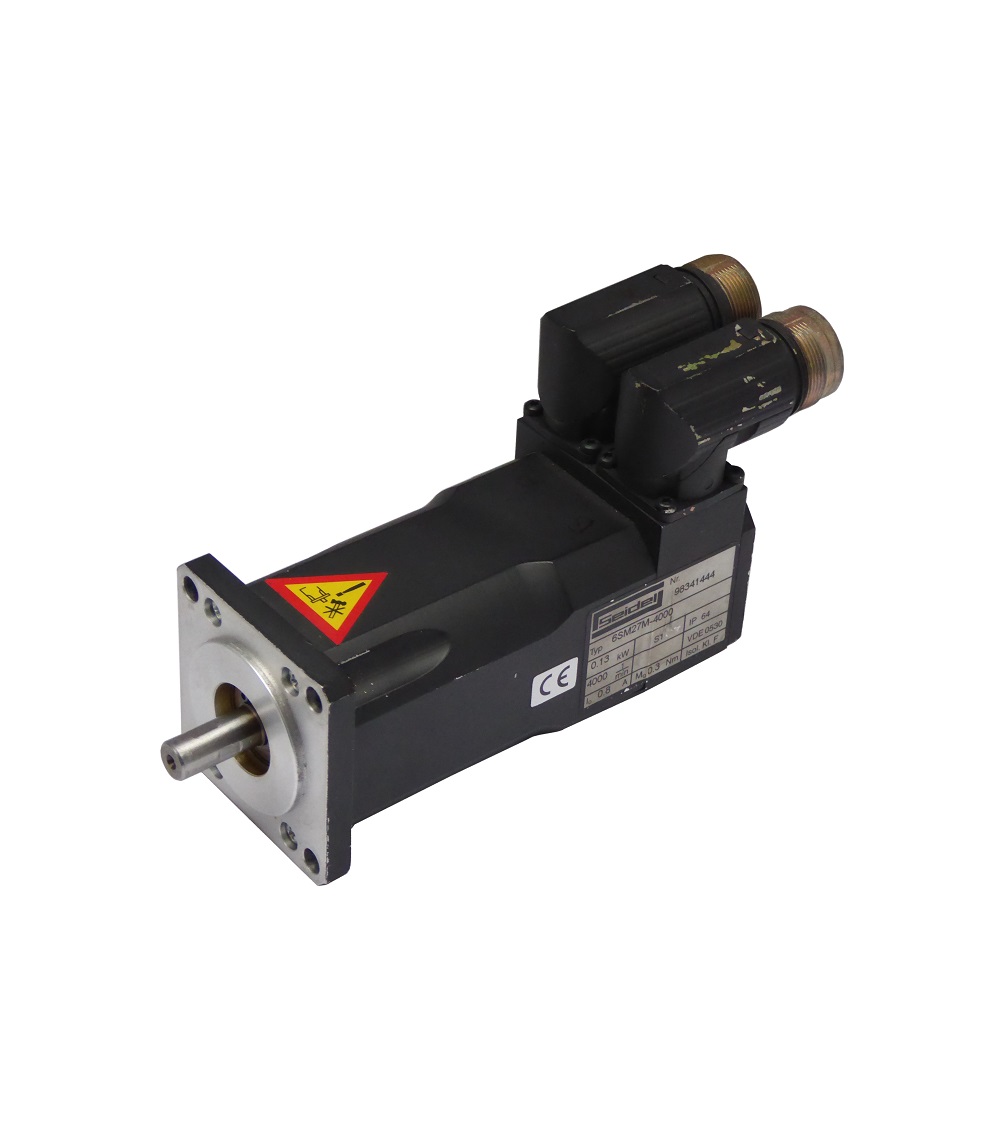

6SM27-M-4000 brushless servomotor 0.3Nm, 4000rpm SEIDEL

6SM27M-4000 brushless servo motor with a resolver.

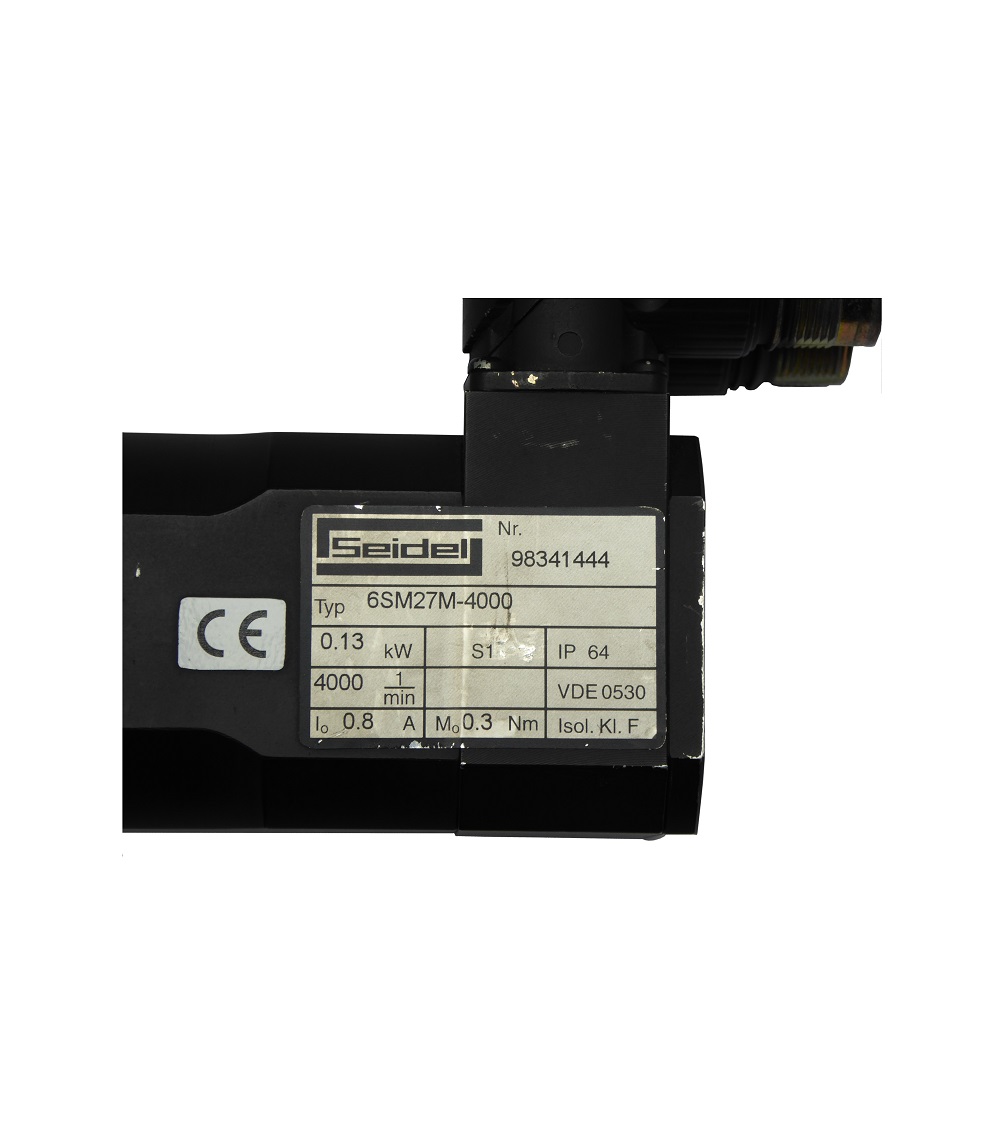

The motor is rated at 0.3 Nm holding torque, 4000rpm, IP64.

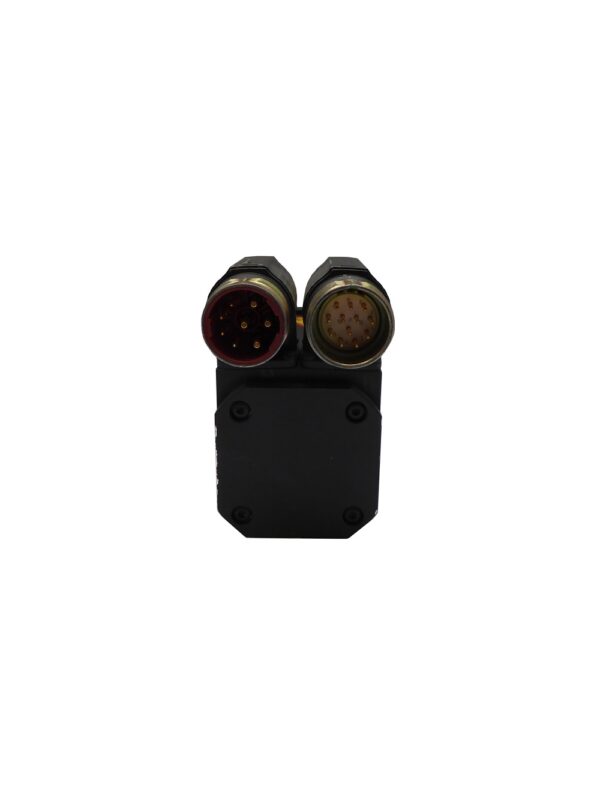

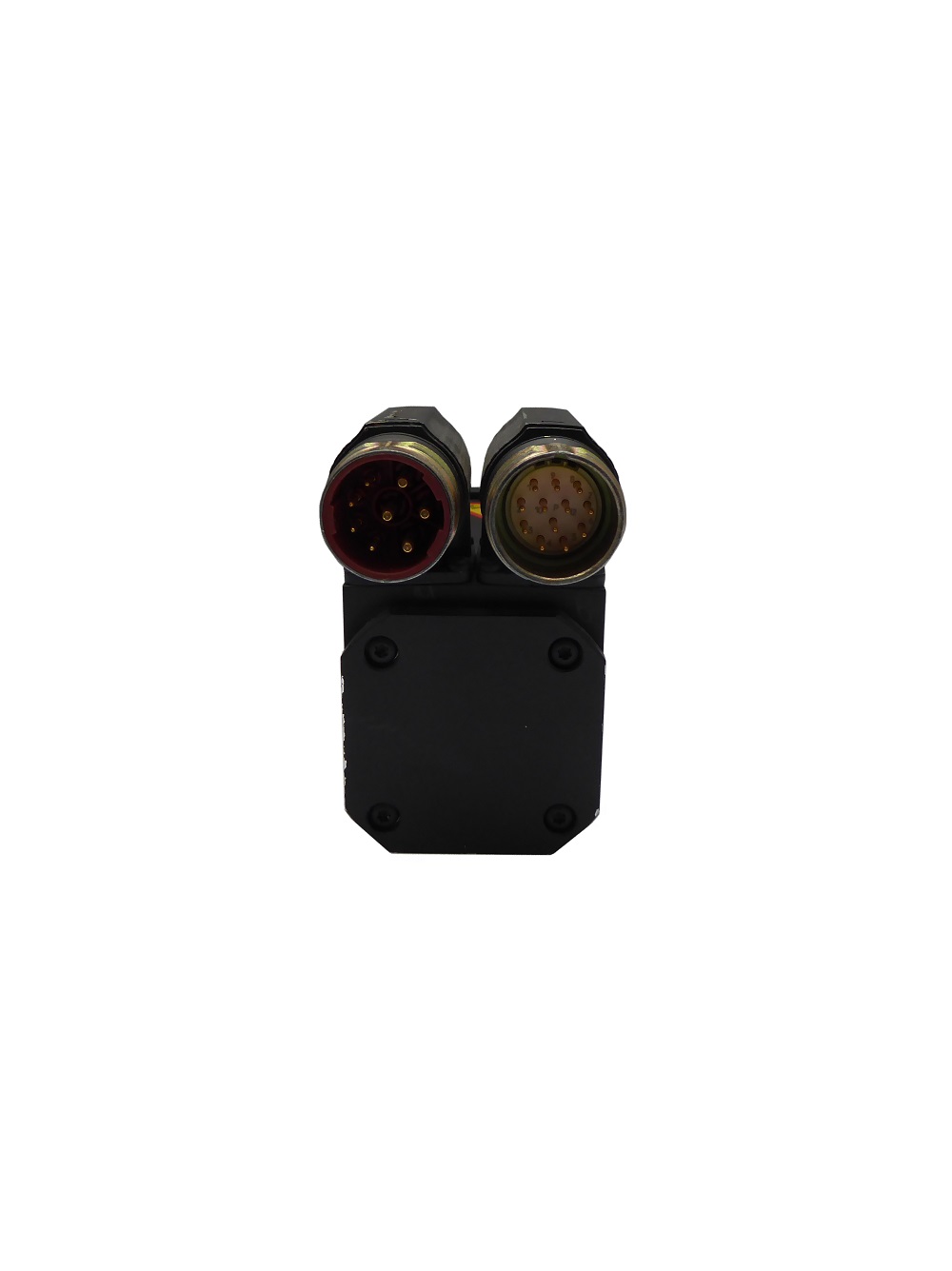

Connections are made via sockets on the motor housing.

Suitable mating connectors are available, as is a user manual.

The motor flange measures 55mm square, with an 9mm shaft with keyway,

40mm diameter locating spigot and four mounting holes on a 63mm PCD.

Overall length is 141mm and weight is 1.1kg.

This item is used, has been tested and is fully functional.
