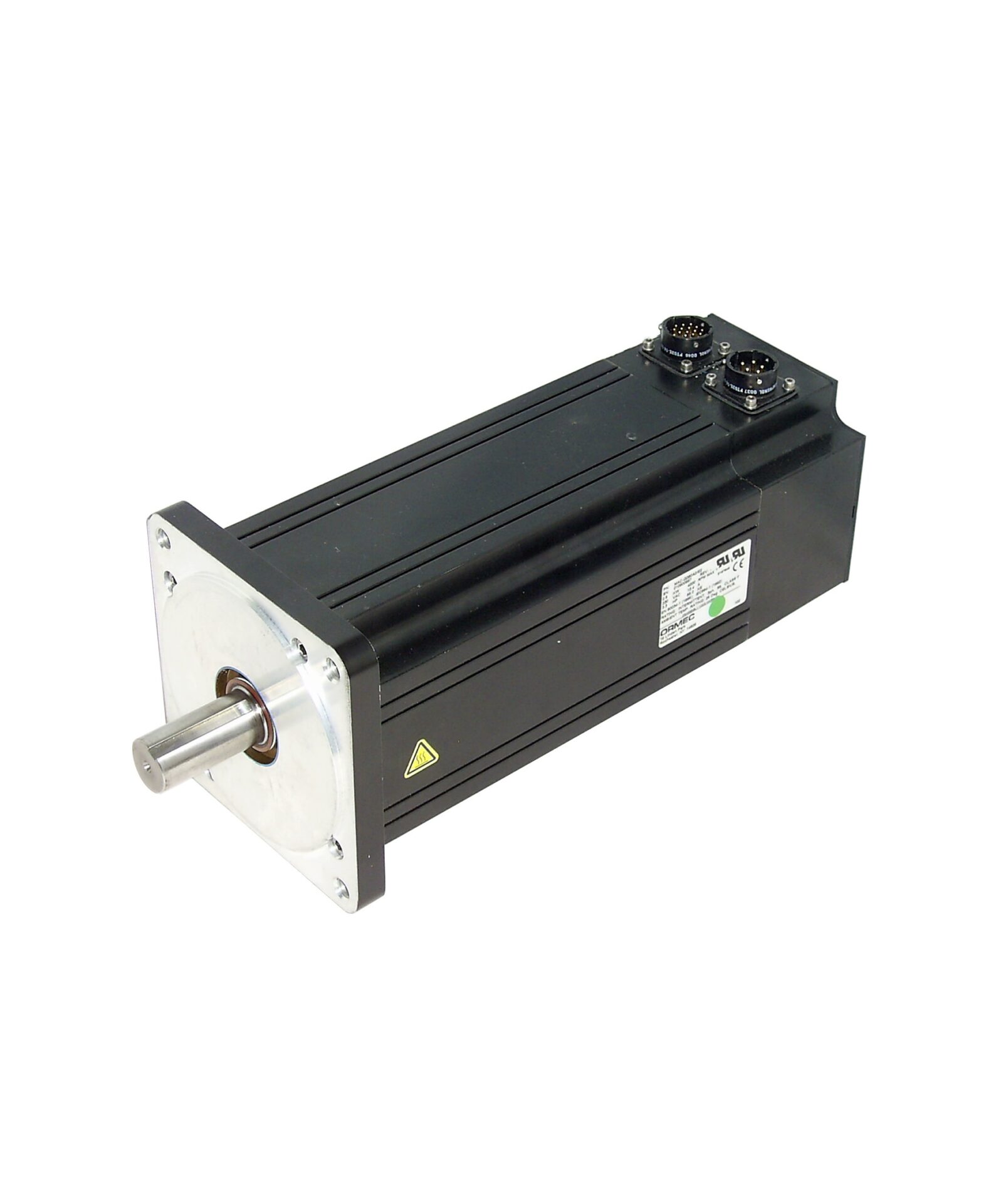

MAC-G080A2/E2 brushless servo motor ORMEC hardly used

This MAC-G080A2/E2 brushless servo motor is a sinusoidally wound motor

made by ORMEC and is fitted with an encoder.

The motor has a 230V winding and is rated at 2.5kW at 2600rpm.

The motor is rated at 9.4Nm constant stall torque and maximum speed 4200rpm.

The motor flange measures 5 inch (127 mm) square,

with a 0.875 inch (22.225 mm) shaft (No keyway),

4.5 inch (114.3 mm) diameter locating spigot

and four mounting holes on a  5.875 inch (149.23 mm) PCD.

Overall length is  11.11 inch (282.2 mm),

excluding the shaft and weight is about 13 kg.

This item appears to have been used as a test motor.

It has not been tested and is sold as seen basis.

Please contact us for further details.
