SKU : MC464-P860-01537

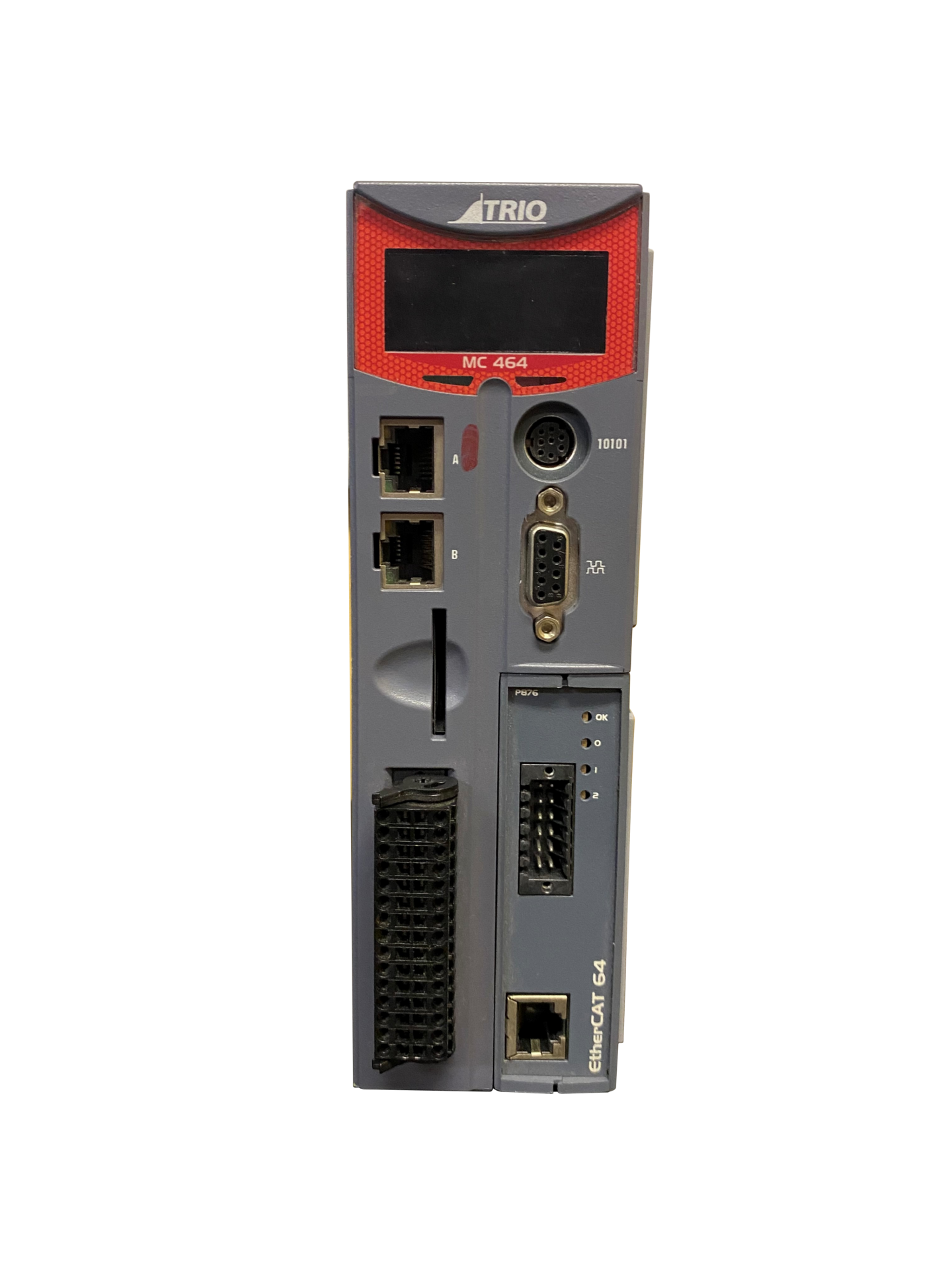

MC464-P860-01537 EtherCAT Module


MC464-P860-01537 EtherCAT Module

Based on the 64bit 400MHz MIPS the MC464 supports up to 64 axes of motion with 64 bit integer position registers for ultra precise axis resolution. Using expansion modules the MC464 supports up to 64 networked digital drives, 24 analogue servo drives, 24 pulse and direction drives and 64 absolute and incremental encoders in any combination.

Controller is supplied with 2 axis EtherCAT expansion module.


  • EtherCAT, Sercos, SLM and RTEX Digital Drive Interfaces (optional)
  • Up to 25 Axes Conventional Servo/Stepper
  • Linear, Circular, Helical and Spherical Interpolation
  • Flexible CAM shapes, Linked Motion
  • Biss, EnDAT and SSI Absolute Encoder Supported
  • Hardware Linked Outputs for Camera / Laser Control
  • Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
  • 125 – 2000 µsec Selectable Servo Update
  • Anybus-CC Module for Flexible Factory Comms incl. ProfiNet/Profibus
  • IEC 61131-3 Programming
  • Multi-tasking BASIC Programming
  • Text File Handling
  • Robotic Transformations
  • SD Memory Card Slot
  • CANopen IO Expansion
  • Backlit LCD display
  • RoHS, UL Listed, CE approved
