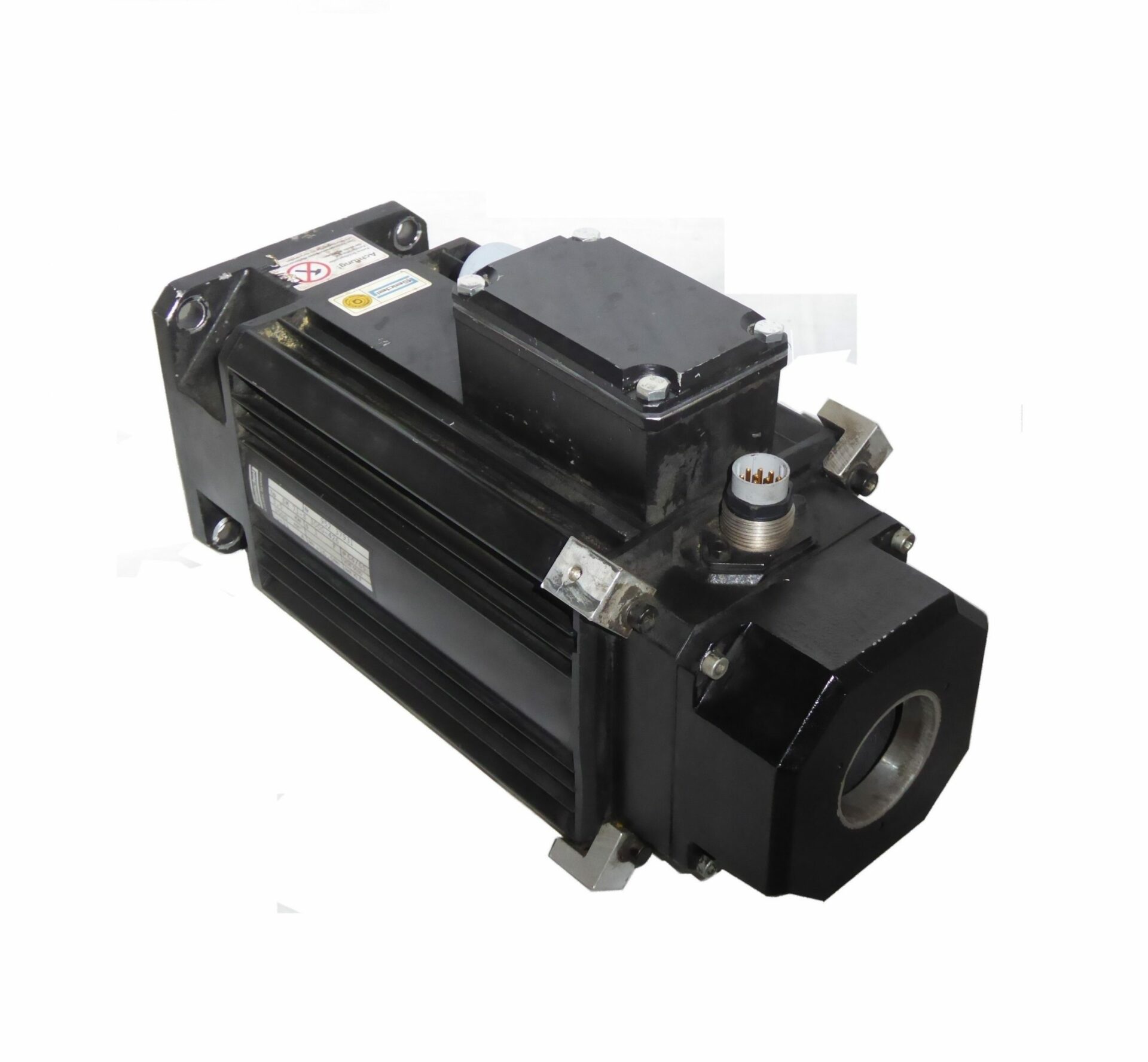

This SM71 S-3000-426 brushless servomotor is a 6 pole, trapezoidally wound

servomotor made by Seidel and is fitted with Hall & Tacho feedback unit.

A key will be fitted to the shaft free of charge.

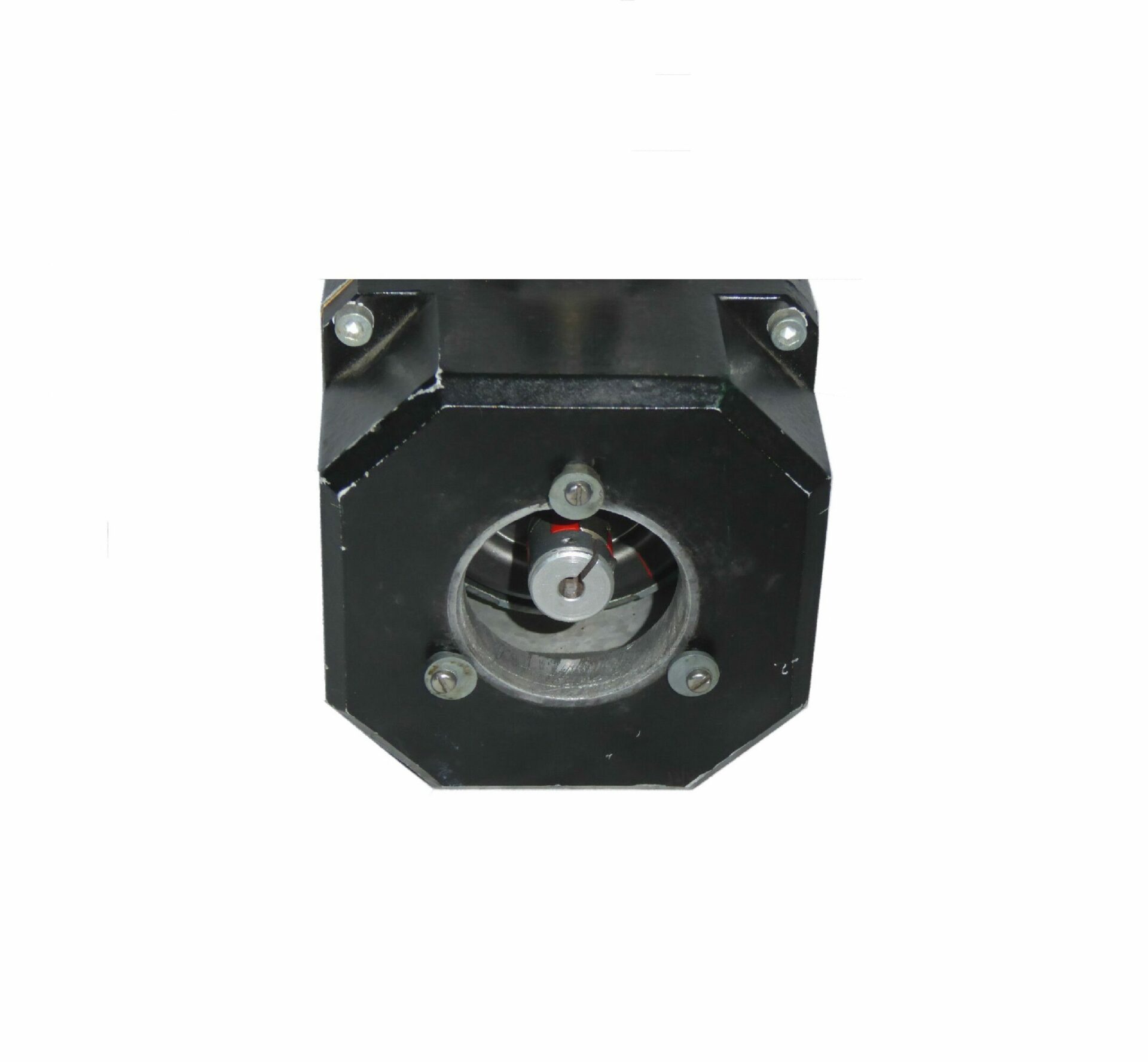

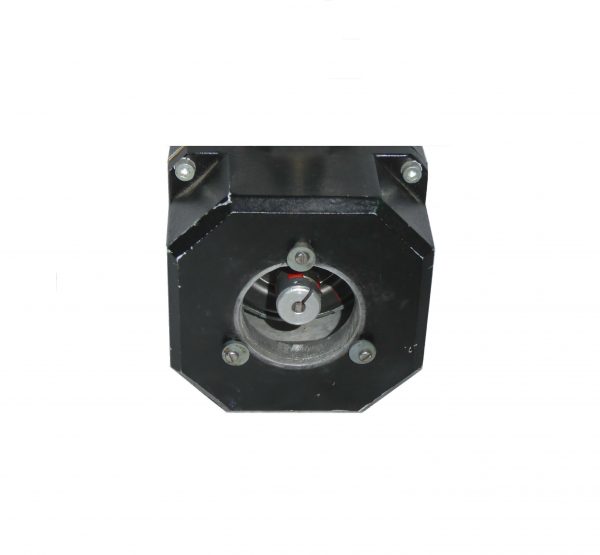

The “426” encoder adaptor and 4 rear angle brackets can be removed free of charge if not required.

The motor has a 172V winding making it suitable for use with servo drives e.g. 60WKS-M240/22.

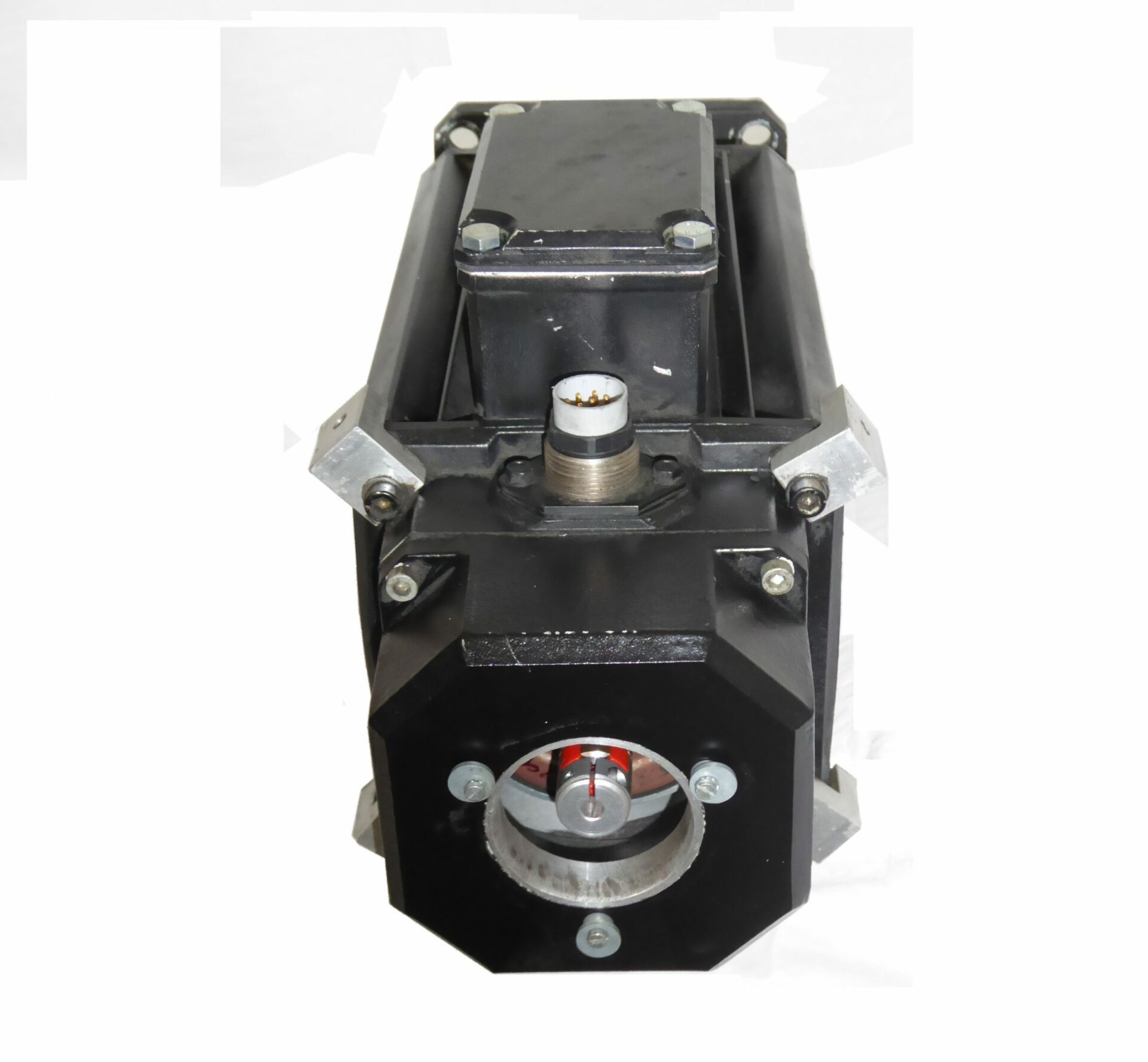

Connections are made on to terminals for power connections and connector for the feedback.

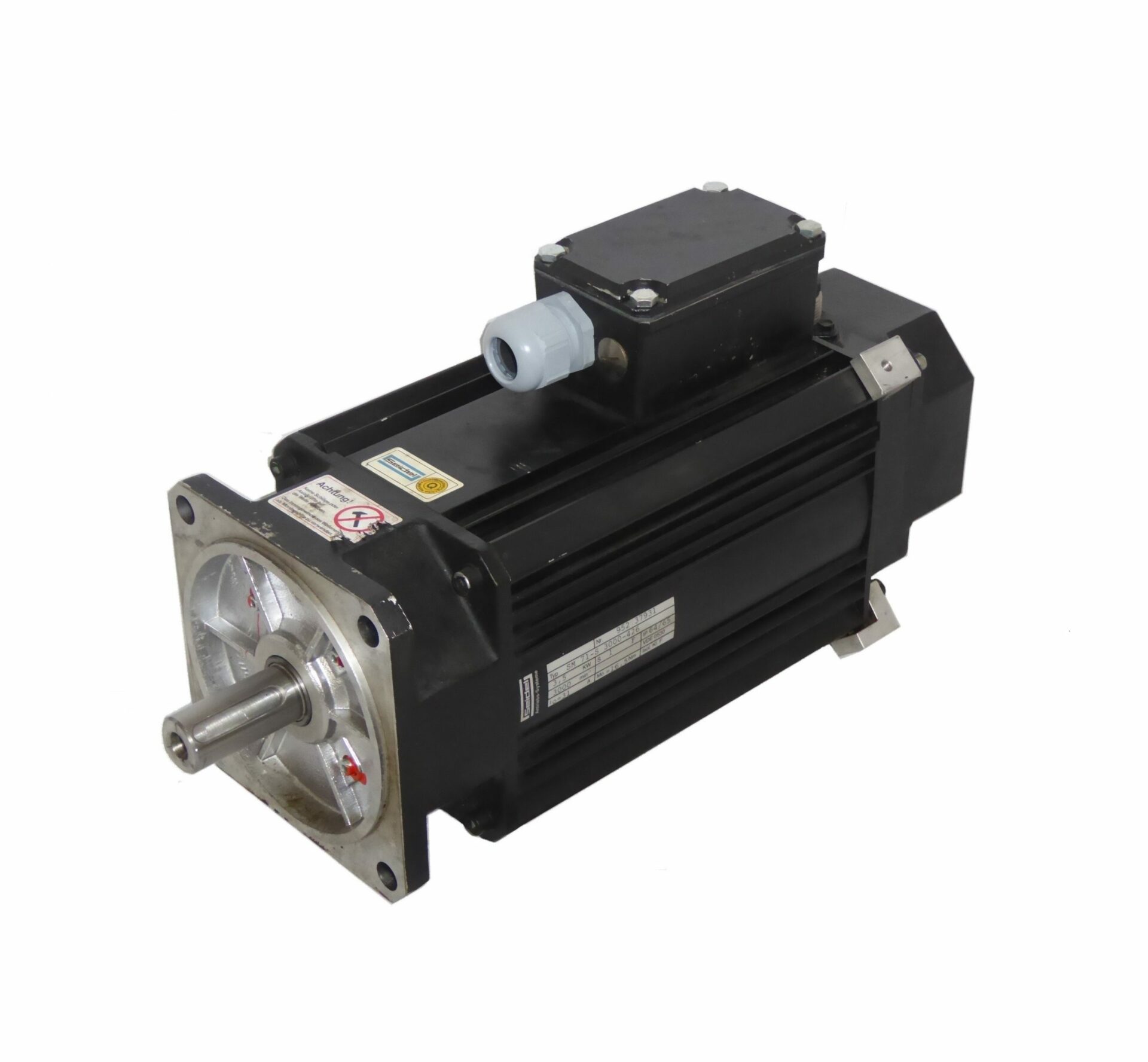

The motor flange measures 142mm square, with a 24mm shaft (keywayed), 130mm diameter locating spigot

and four mounting holes on a 165mm PCD. Overall length is 366mm without encoder adaptor and weight is about 17 Kg.

This item is used and is fully functional.

Please contact us on 0161 217 7100 for further details.

Keywords – Fritz A. Seidel  SM 71 S 3000
