SKU :  SM100 K-2000

SM100 K-2000 brushless servo motor Kollmorgen-Seidel NEW with warranty

£1,495.00

SM100 K-2000 brushless servo motor Kollmorgen-Seidel NEW with warranty

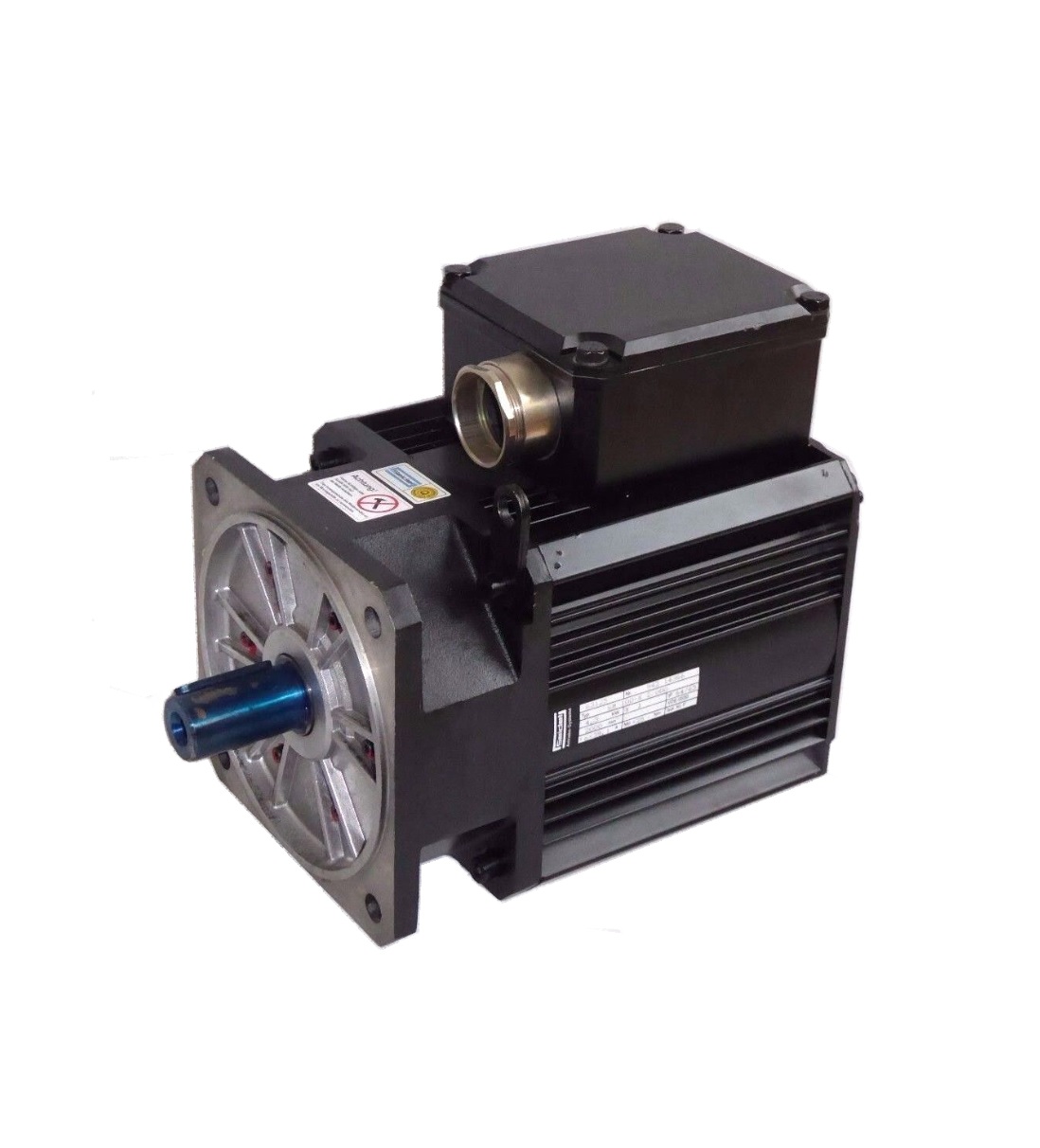

This SM100 K-2000 brushless servomotor is a 6 pole, trapezoidally wound

servomotor made by Kollmorgen Seidel and is fitted with Hall & Tacho feedback unit.

The motor has a 172V winding making it suitable for use with servo drives (e.g. 64WKS-M240/50) providing up to 240Vdc bus voltage.

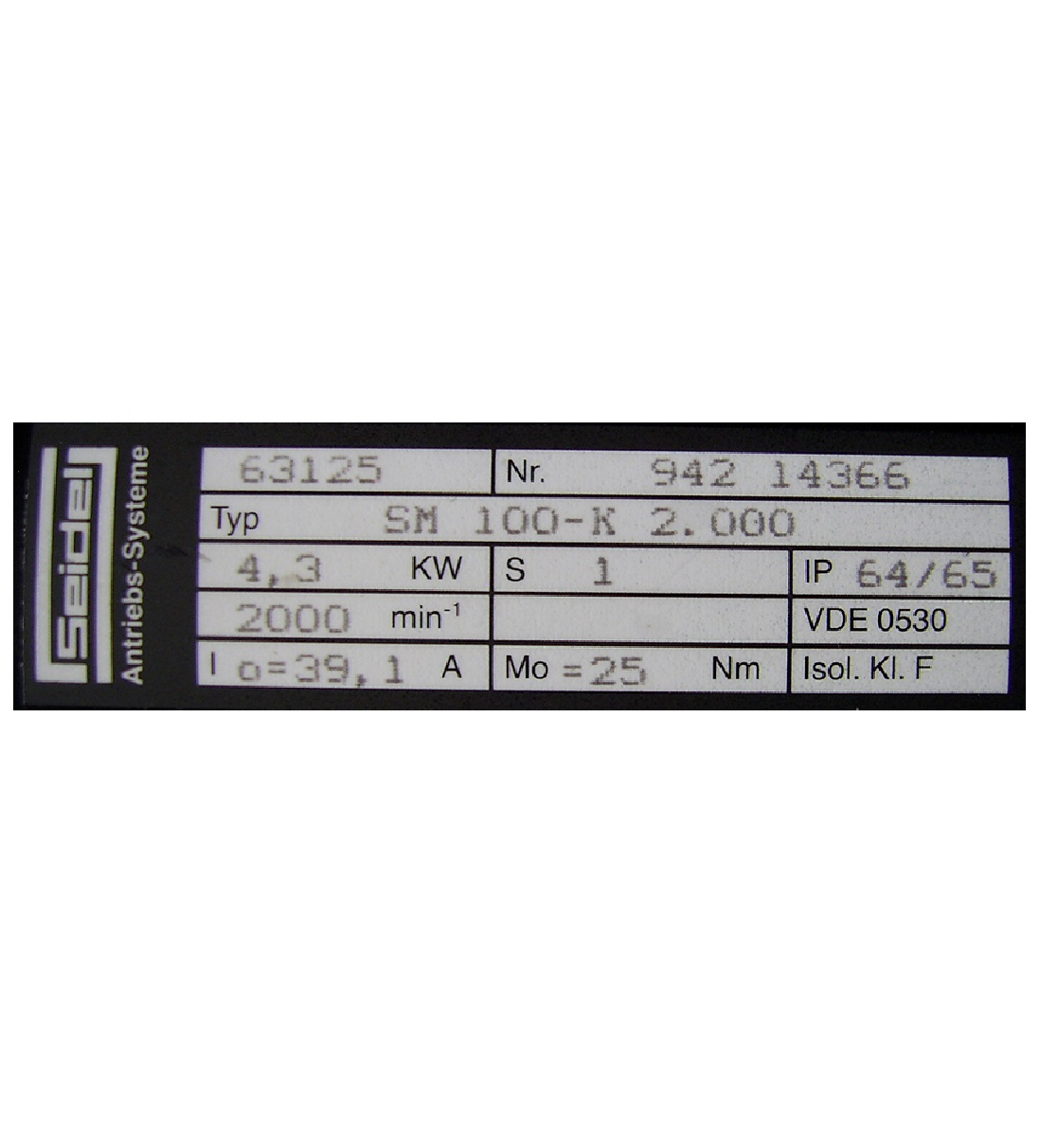

The motor is rated at 25.0 Nm holding torque, 17.0 Nm rated torque at 3000rpm and 100 Nm peak,

with a torque constant of 0.65 Nm/A. Motor inertia is 74 kgcm2.

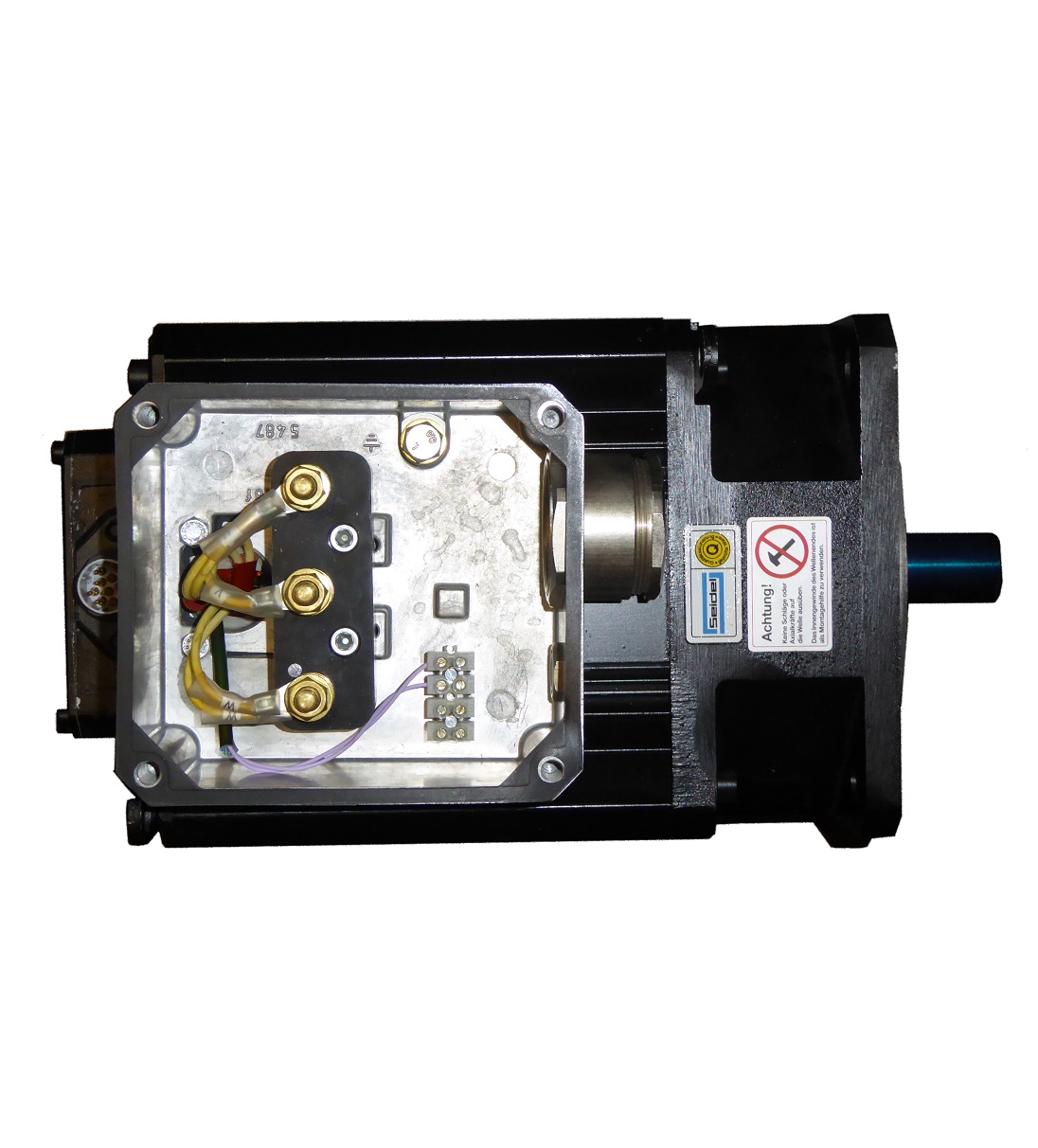

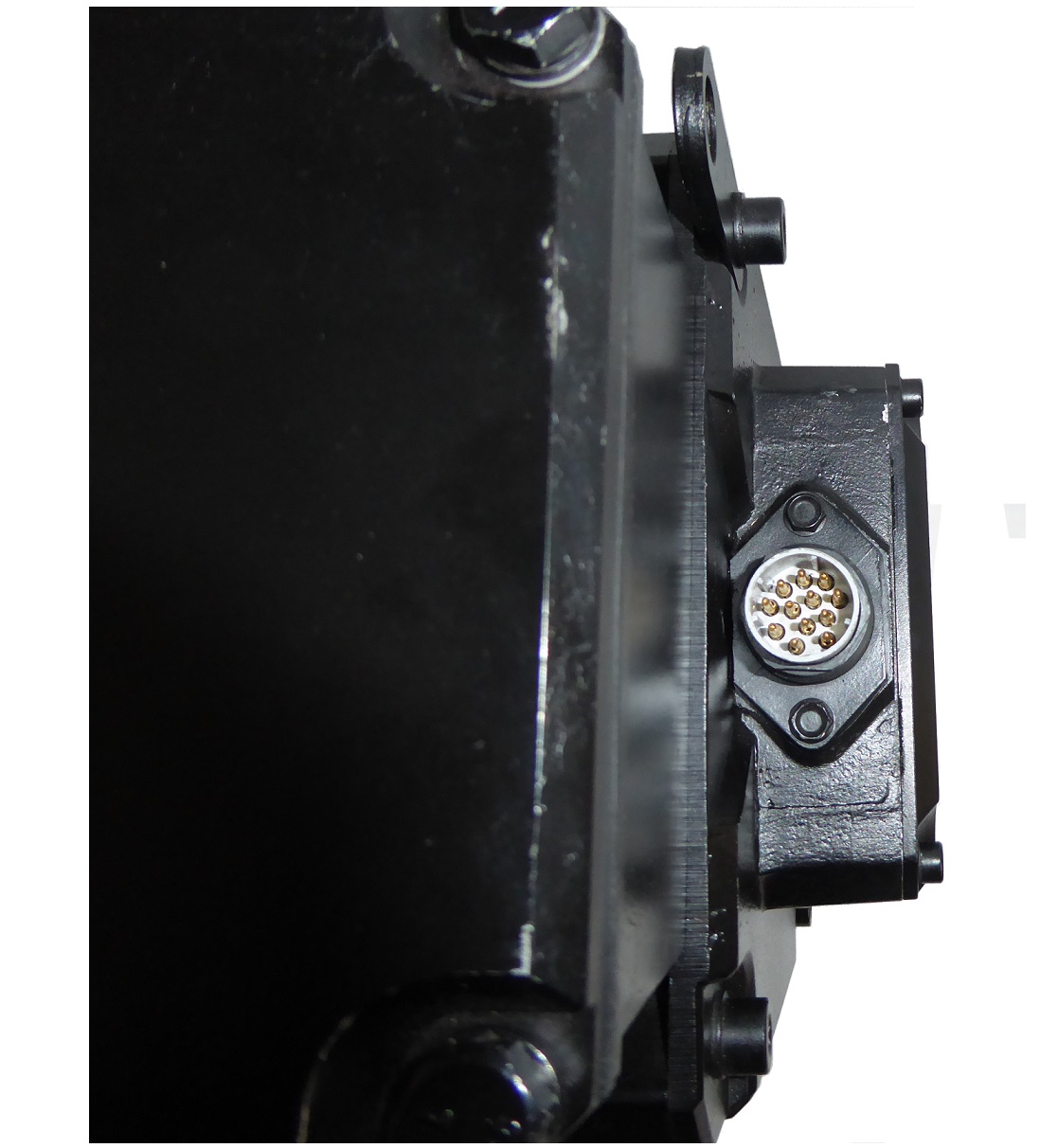

Connections are made on to terminals for power connections and socket for the feedback.

The motor flange measures 190mm square, with a 32mm shaft (keywayed), 180mm diameter locating spigot

and four mounting holes on a 215mm PCD. Overall length is 367mm and weight is about 28 Kg.

This item is unused and is fully functional.

The item is supplied with 12 months warranty.

Please contact us for further details.

1 in stock
