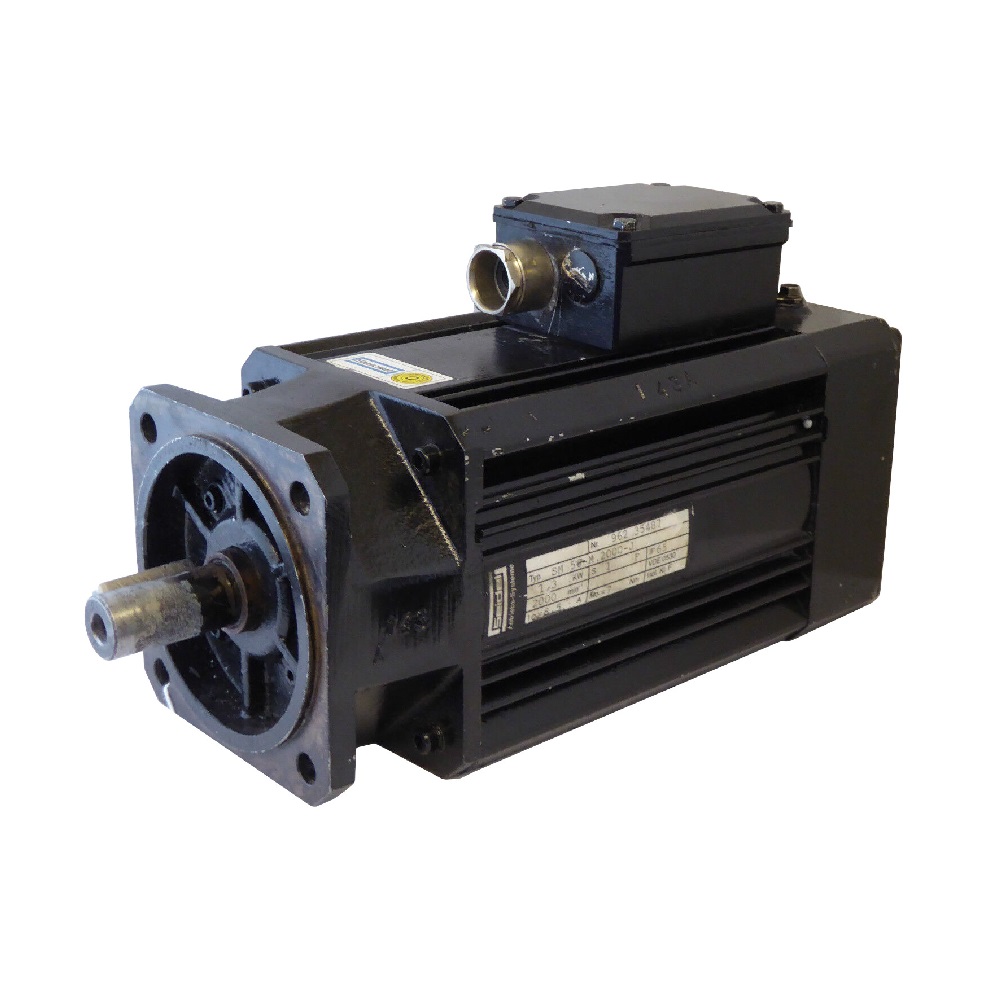

SM56 M-2000-J brushless servomotor Kollmorgen Seidel used


SM56 M-2000-J brushless servomotor Kollmorgen Seidel used

This SM56 M-2000-Jbrushless servomotor is a 6 pole, trapezoidally wound motor

made by Kollmorgen Seidel and is fitted with Hall & Tacho feedback unit and a shaft seal.

The motor has a 172V winding making it suitable for use with servo drives providing up to 240Vdc bus voltage.

The motor is rated at 7.0 Nm holding torque, 6.2 Nm rated torque at 2000rpm and 34 Nm peak,

with a torque constant of 0.843 Nm/A. Motor inertia is 8.7 kgcm2.

Connections are made on to terminals for power connections and connector for the feedback.

The motor flange measures 115mm square, with a 19mm shaft (keywayed),

95mm diameter locating spigot and four mounting holes on a 115mm PCD.

Overall length is 295mm and weight is 8.5 kg.

Although used, this item has been tested and is fully functional.

Please contact us for further details.
