SKU : DS1078 LAM

DS1078 LAM Microstepping drive 90Vdc/10Arms/14.1Ap

£357.00

DS1078 LAM Microstepping drive 90Vdc/10Arms/14.1Ap

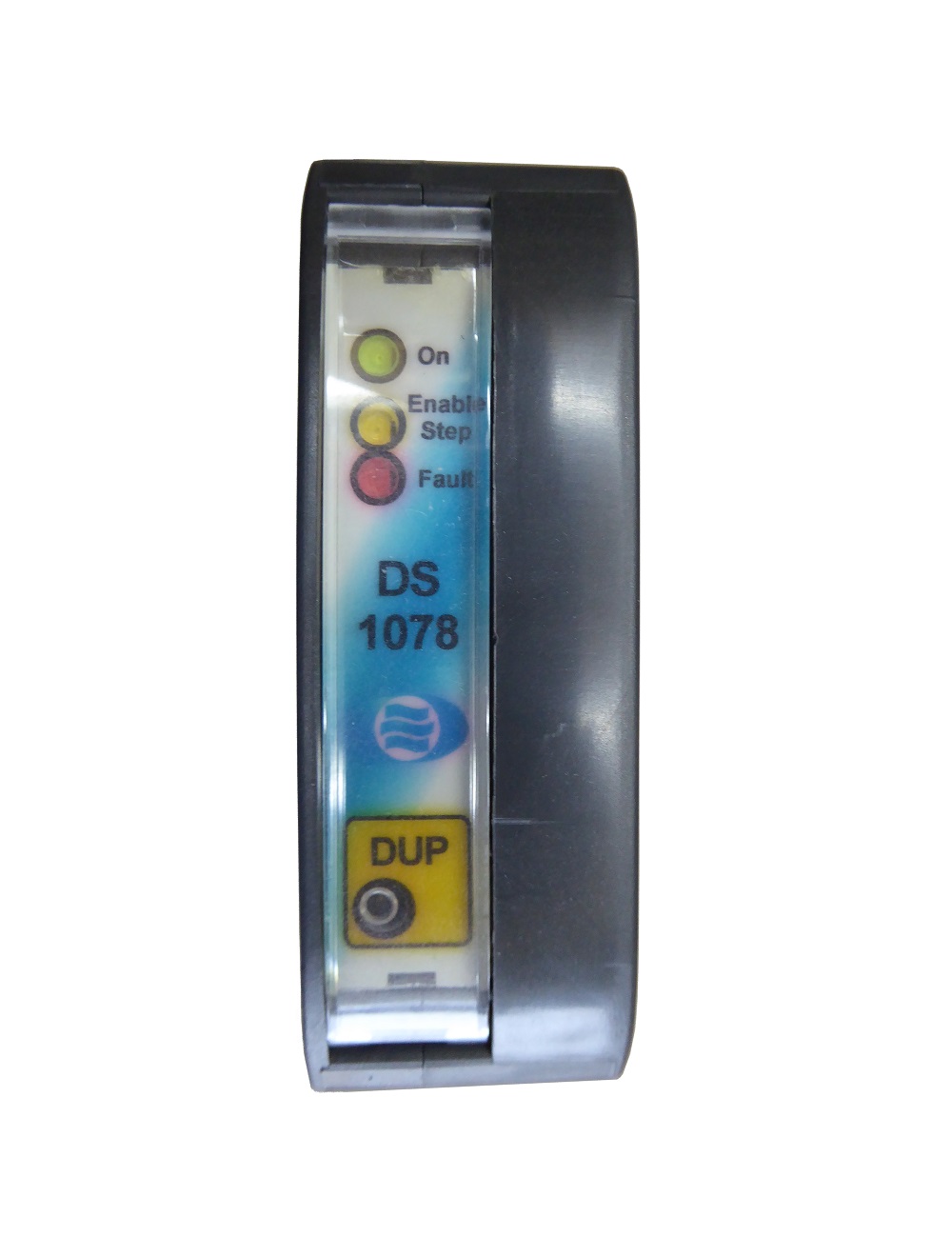

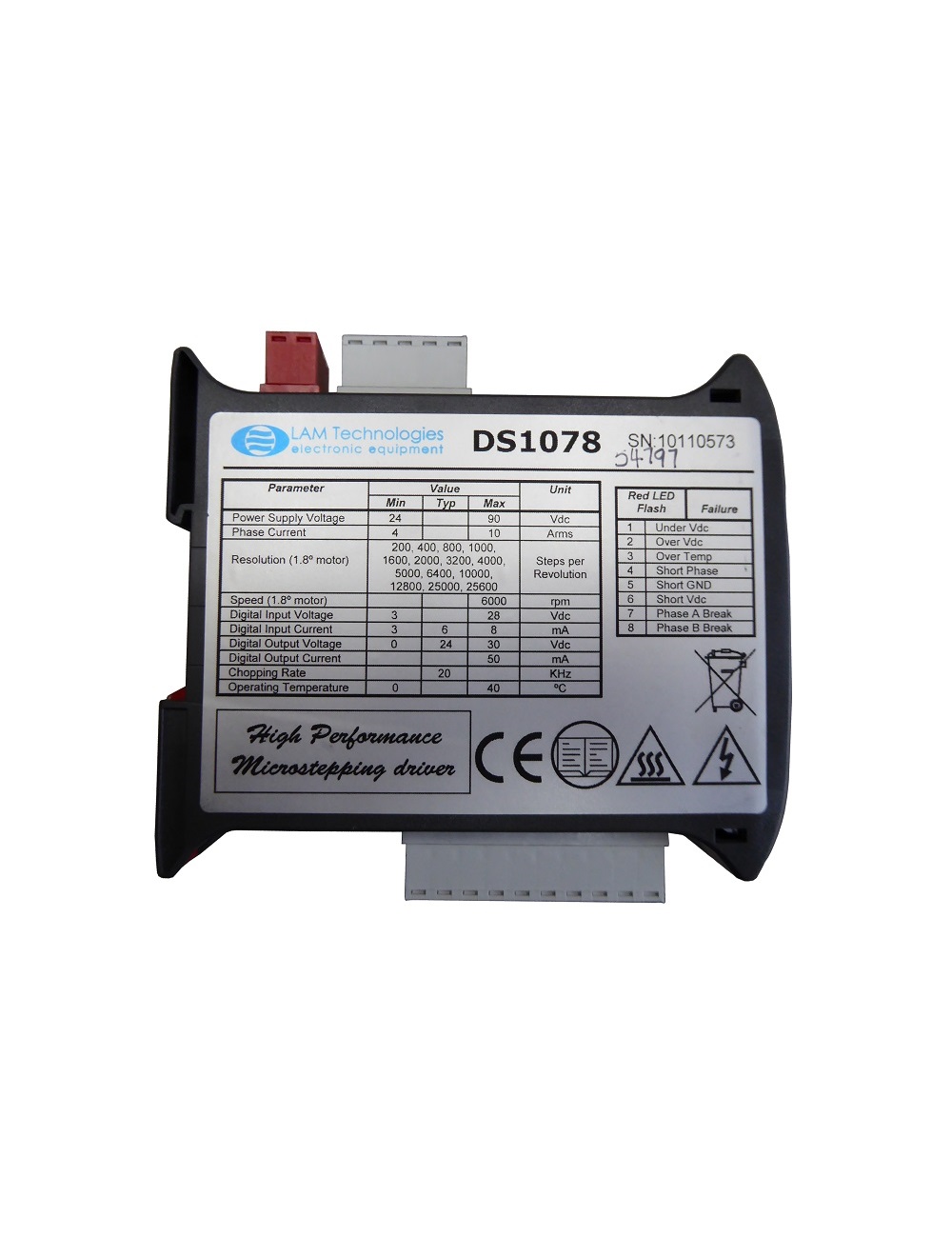

This DS1078 stepper Drive module, made by LAM Technologies in Italy

can be easily and quickly mounted to DIN rail.

Specification:

  • 4-10 Amps RMS
  • 24-90Vdc
  • Step resolution available 200, 400, 800, 1000, 1600, 2000, 3200, 4000, 5000, 6400, 10000, 12800, 25000, 25600
  • Digital input voltage range 3-28 Vdc
  • Digital input supply current 3…8 mA
  • Digital output voltage range 1-30 Vdc
  • Digital output current range 50 mA
  • Protection – Over/Under voltage, Short circuit, Overheating and Break phase
  • Chopper frequency – 20 KHz

It comes complete with connectors shown and a user manual.

For more information please contact us.
