SKU : RDS120/1 10:1

RDS120/1 10:1 gearbox made by Tramec 25mm output shaft 19mm input shaft

£695.00

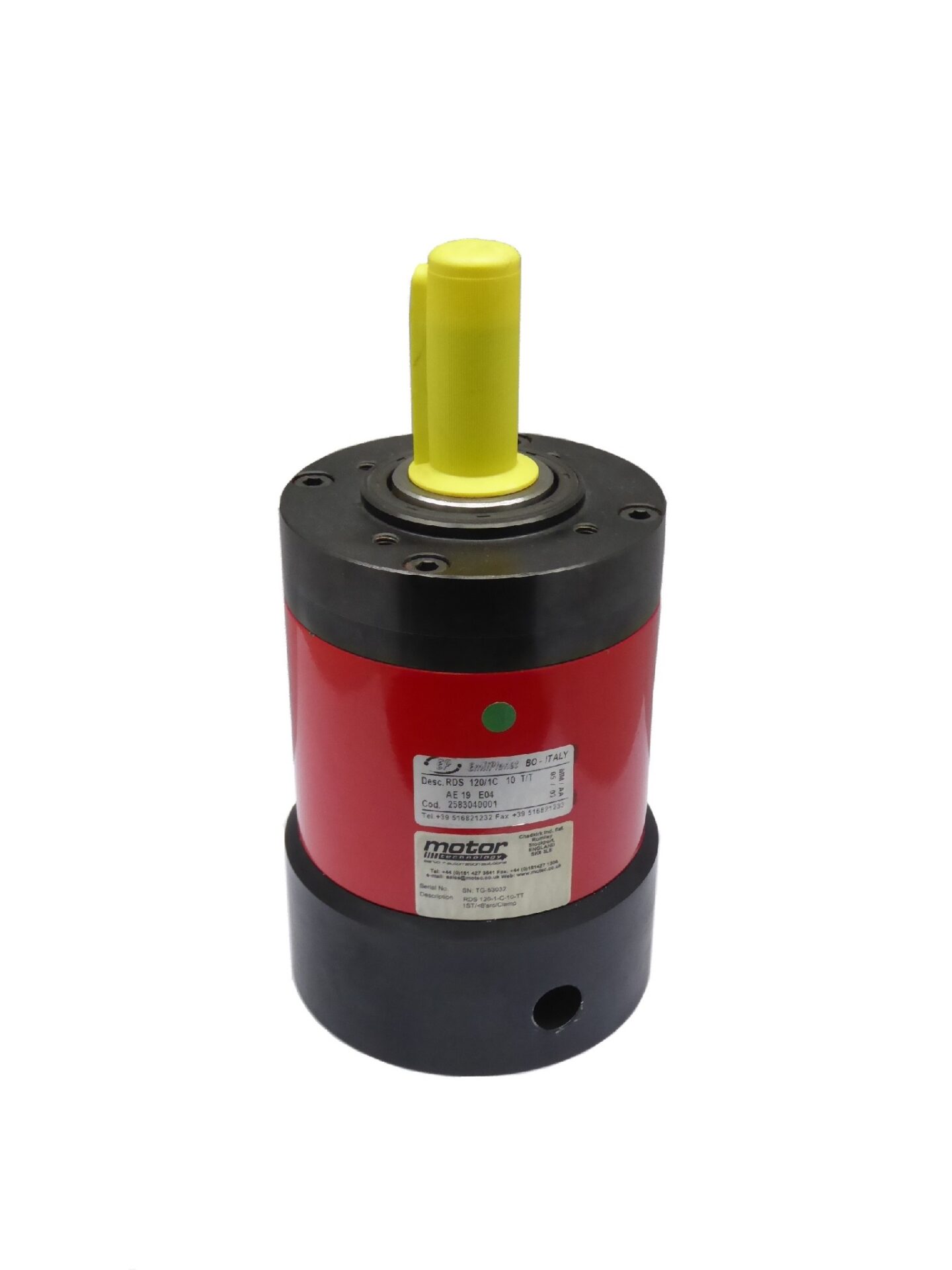

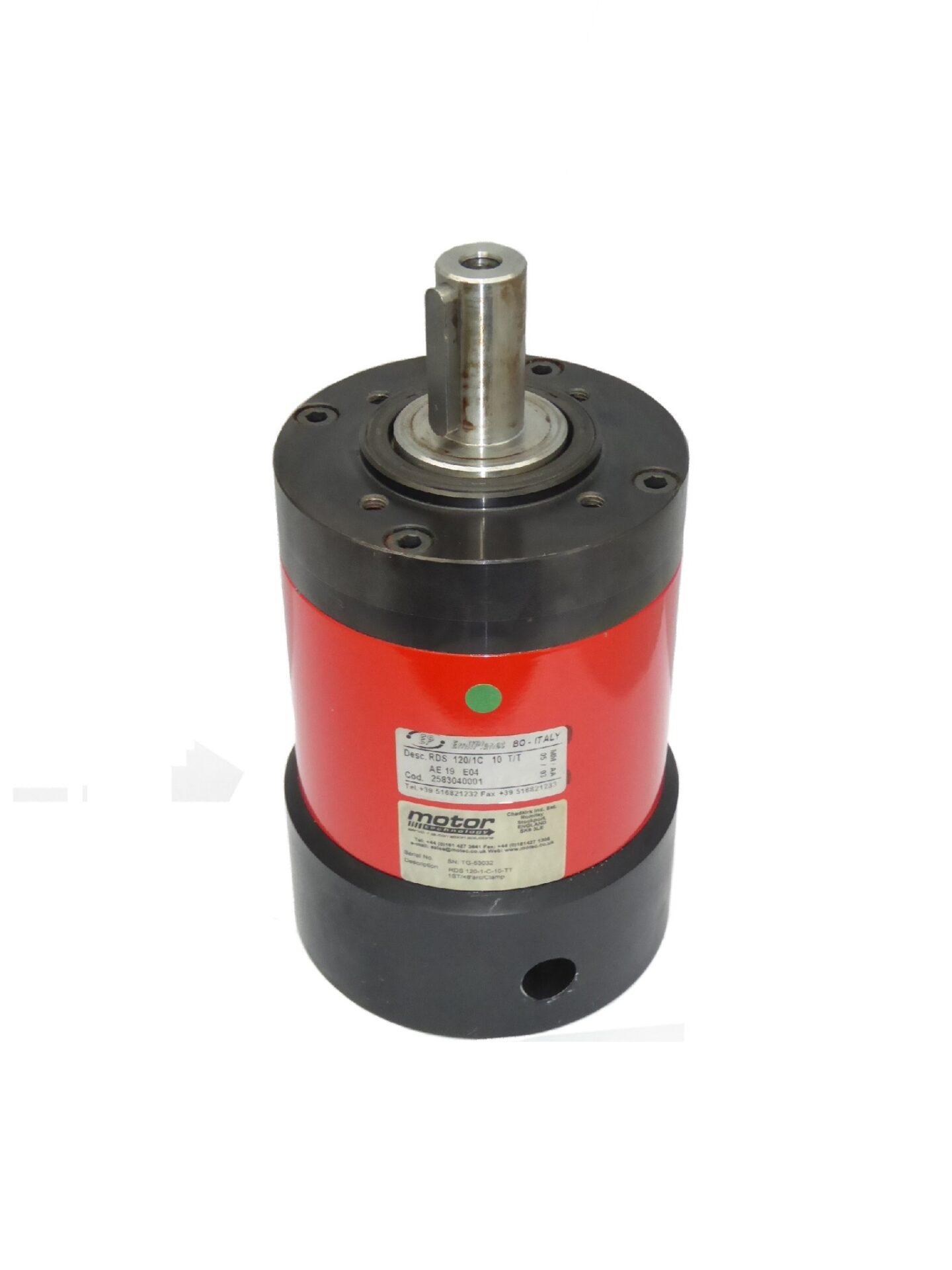

RDS120/1 10:1 gearbox made by Tramec 25mm output shaft 19mm input shaft

This RDS 120 gearbox is a low backlash gearbox with 25:1 ratio made by Tramec.

Part Number: RDS 120-1-C-10-TT AE19 E04

Backlash: <8’arc.

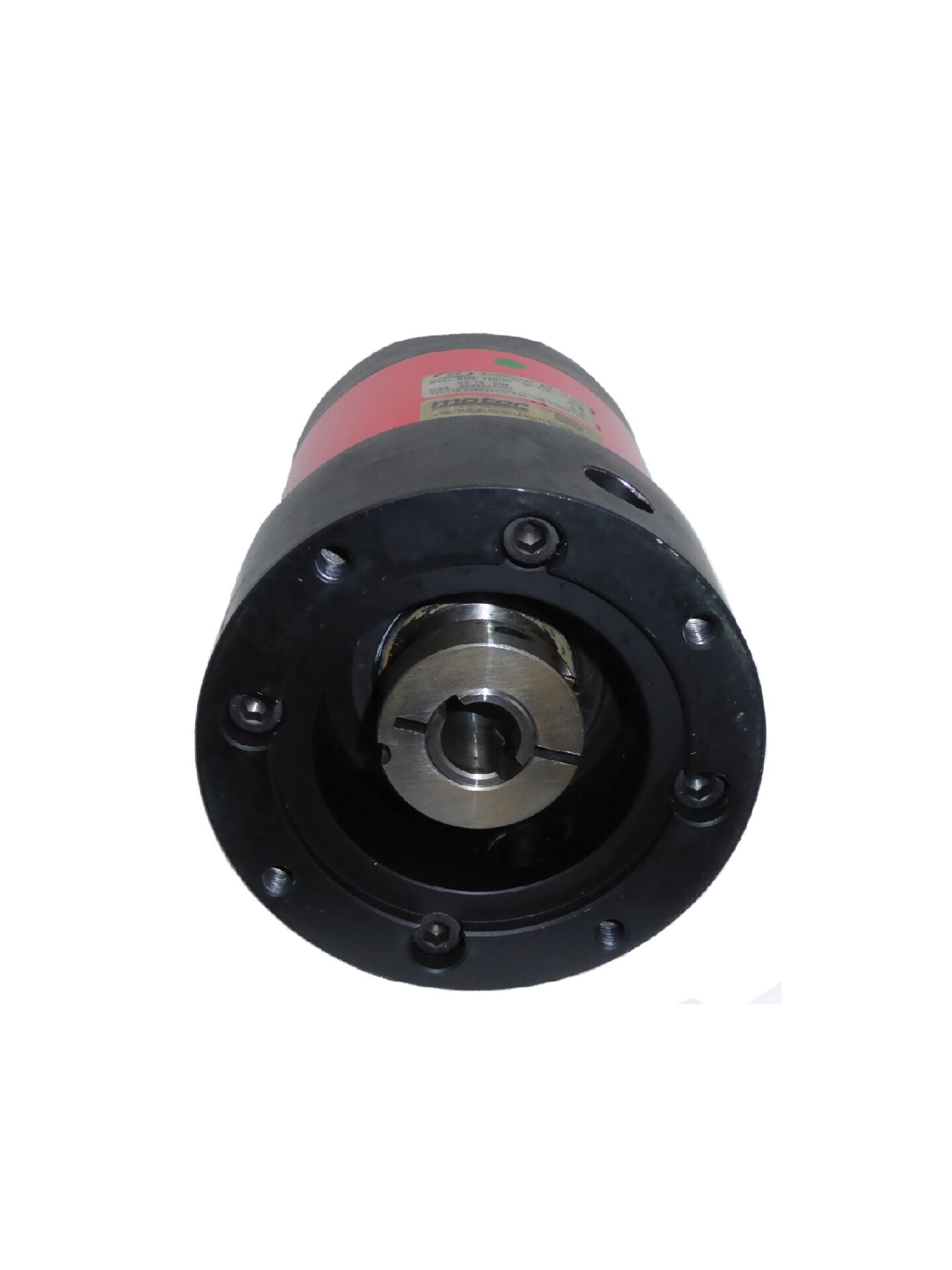

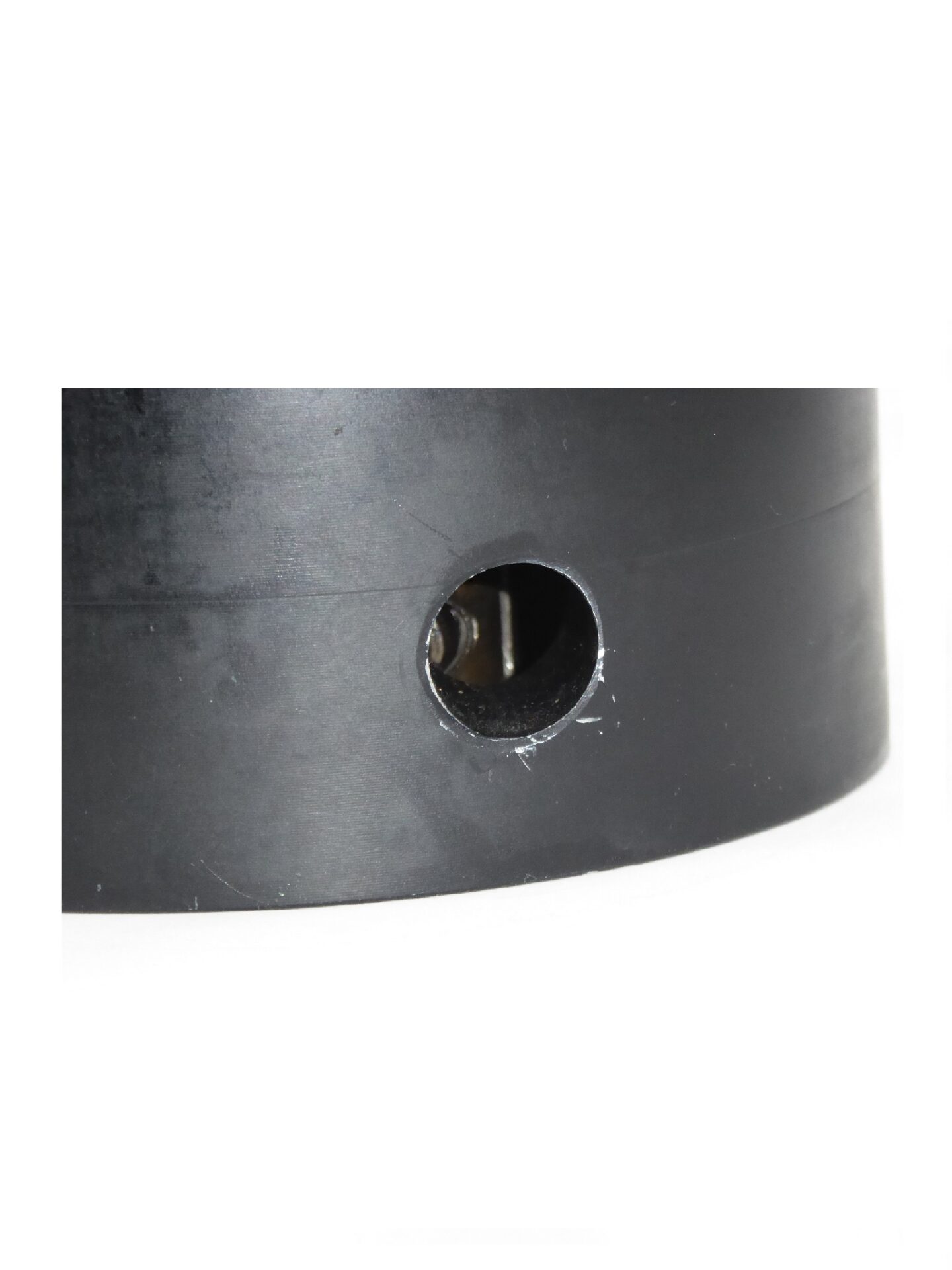

The motor shaft is secured to the gearbox input shaft by means of a clamping ring (see photo).

Output flange dimensions: Shaft 25mm with keyway / 70mm shoulder / 85mm mounting hole pcd.

Motor flange dimensions: Shaft 19mm / 95mm Spigot / 115mm mounting hole pcd.

Please contact us if you require any further details.

Out of stock
