Motor Technology
SKU : SM 71-S 3000-426-1

SM56 M-3000-426 brushless servomotor Seidel used with encoder adaptor & coupling

£895.00

SM56 M-3000-426 brushless servomotor Seidel used with encoder adaptor & coupling



We have over 30 years experience in the supply and servicing of servo and automation equipment.

– – –

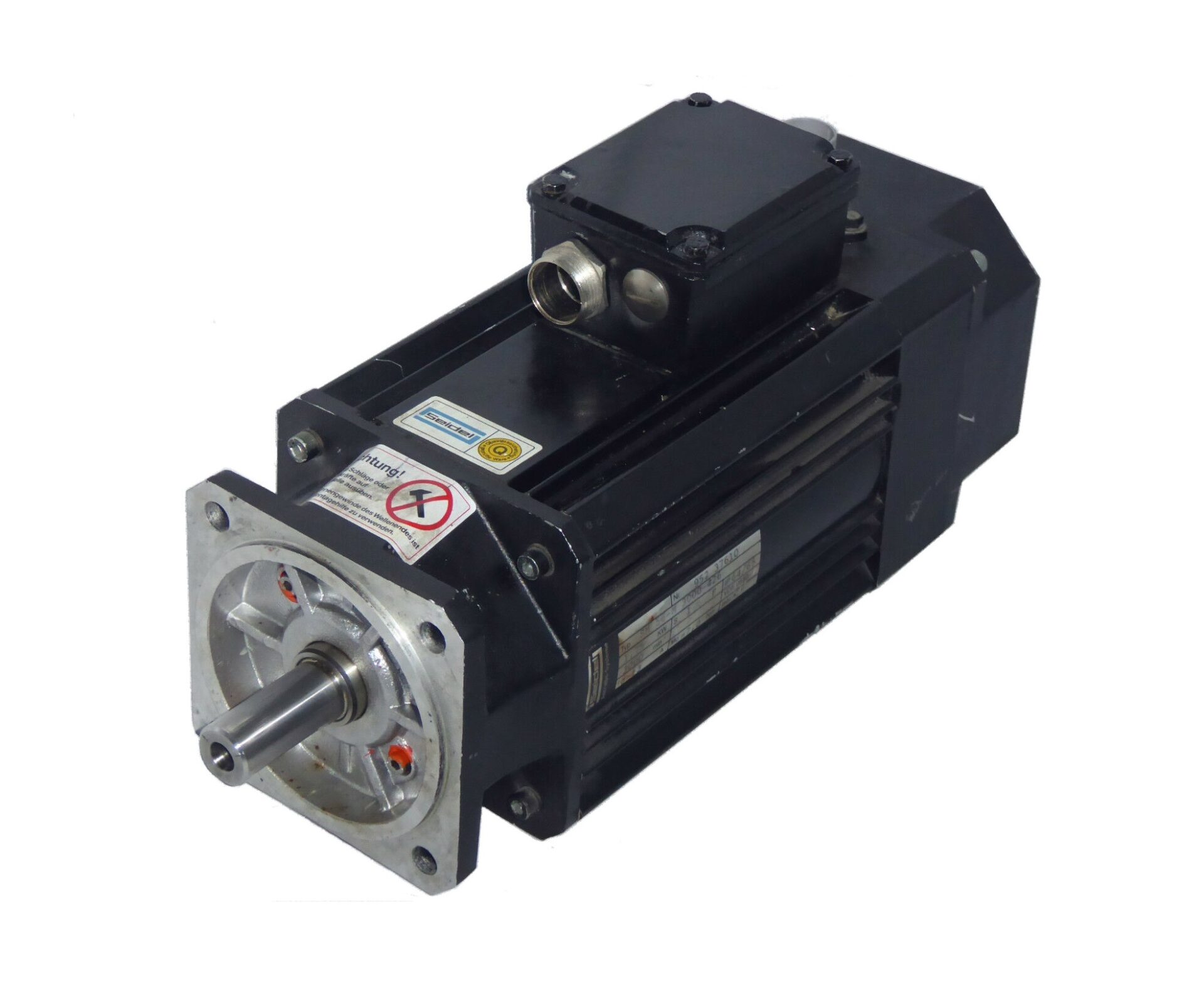

This SM56 M-3000-426 brushless servomotor is a 6 pole, trapezoidally wound motor

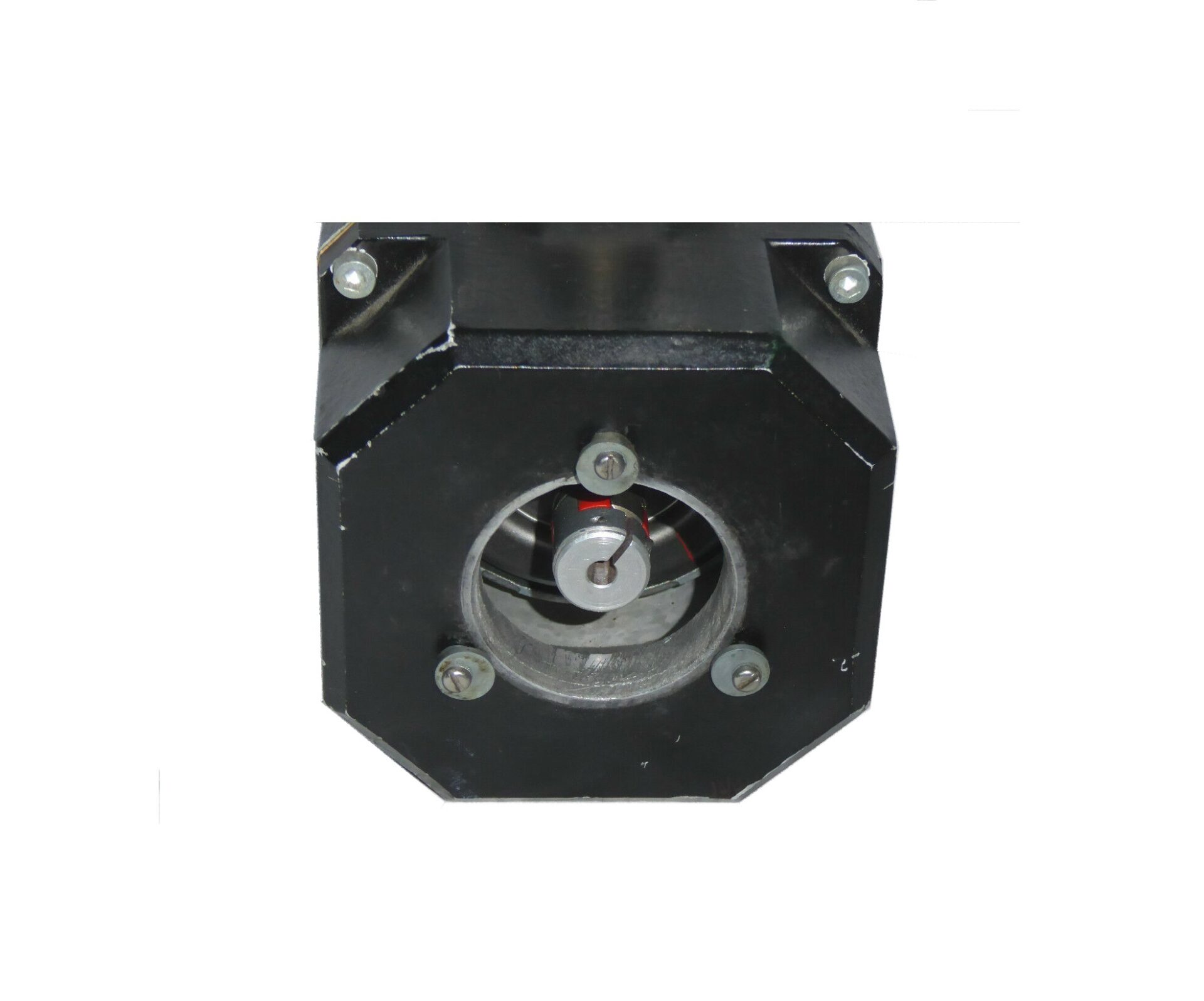

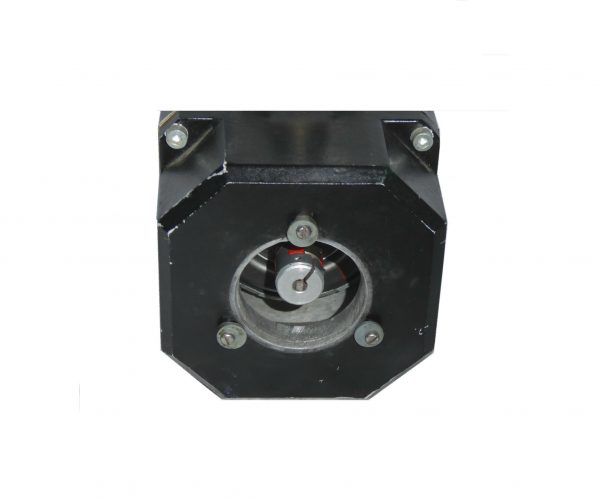

made by Seidel and is fitted with Hall & Tacho feedback unit and an encoder adaptor and coupling.

The motor has a 172V winding making it suitable for use with servo drives providing up to 240Vdc bus voltage.

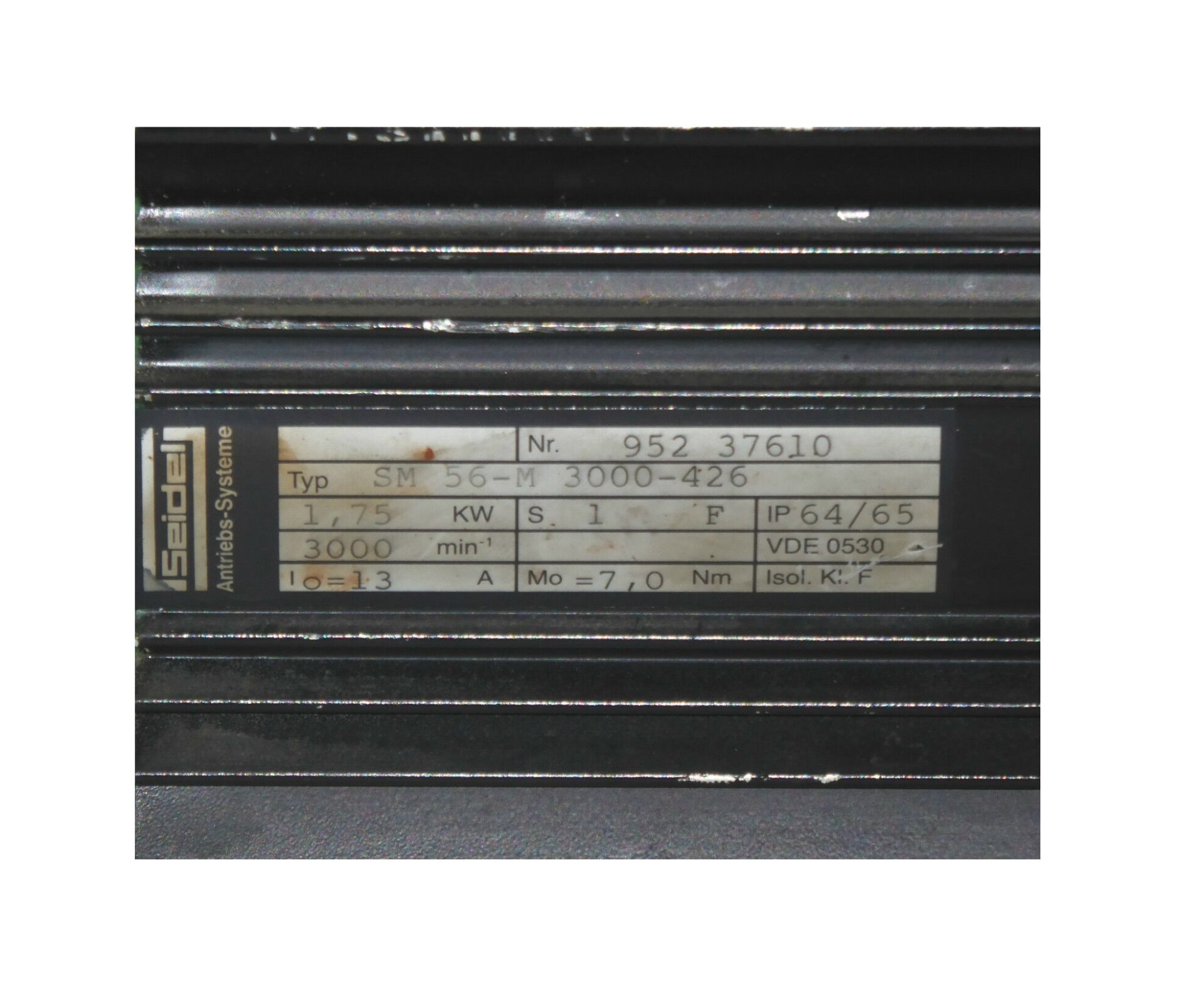

The motor is rated at 7.0 Nm holding torque, 3000rpm, 1.75KW, IP64/65.

Missing key for the motor shaft can be supplied free of charge if requested.

Connections are made on to terminals for power connections and connector for the feedback.

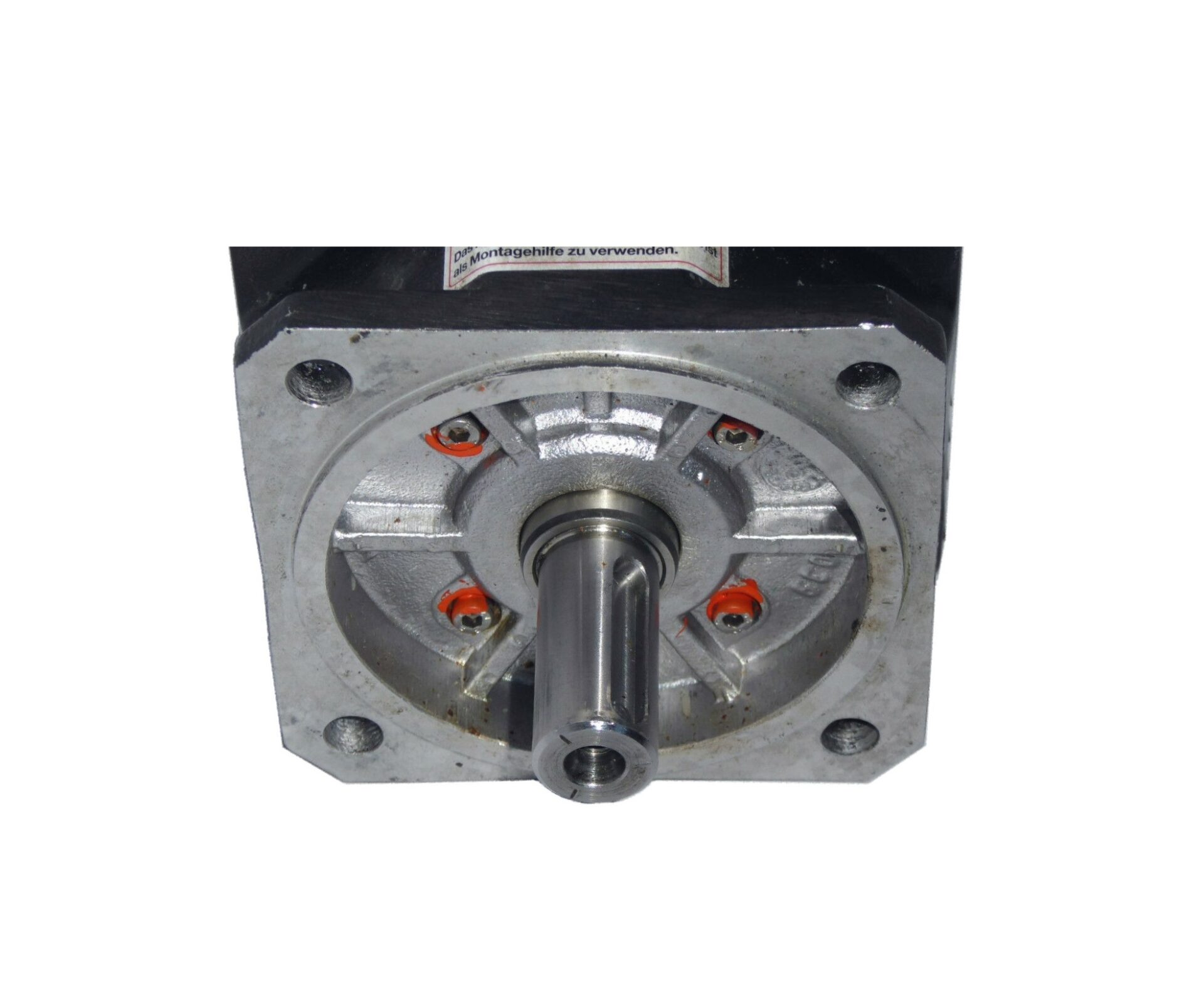

The motor flange measures 115mm square, with a 19mm shaft (keywayed),

95mm diameter locating spigot and four mounting holes on a 115mm PCD.

Although used, this item has been tested and is fully functional.

The item carries 12 months warranty.

Please contact us for further details.

1 in stock
