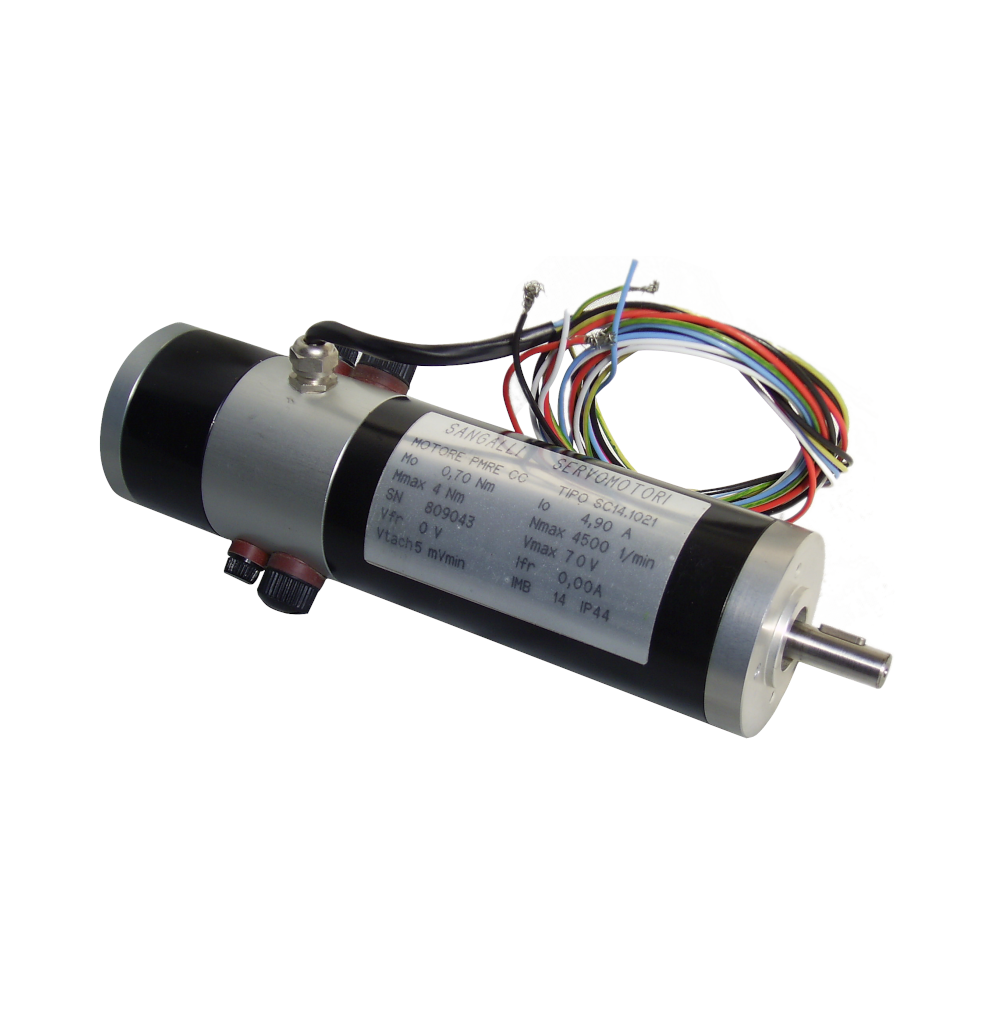

SC14.1021 SANGALLI brushed DC servomotor with tacho

This SC14.1021 is a brushed DC servomotor made by Sangalli Servomotori and is fitted with a tacho.

This motor benefits from rare earth magnets allowing a compact construction. Motor diameter is 58mm.

The details on the motor are as follows:

Sangalli Servomotori

Motore PMRE CC

Tipo SC14.1021

Mo 0,70 Nm

Io 4,90 A

Mmax 4 Nm

Nmax 4500 1/min

SN 809043

Vmax 70V

Vfr 0V

Ifr 0,00A

Vtach 5 mV.min

IMB 14  IP44

Please contact us for further details.

This motor is new
