SKU : SM100-K 3000-G-J

SM100-K 3000-G-J brushless servomotor Danaher Motion 106593 SM 100

£2,875.00

SM100-K 3000-G-J brushless servomotor Danaher Motion 106593 SM 100

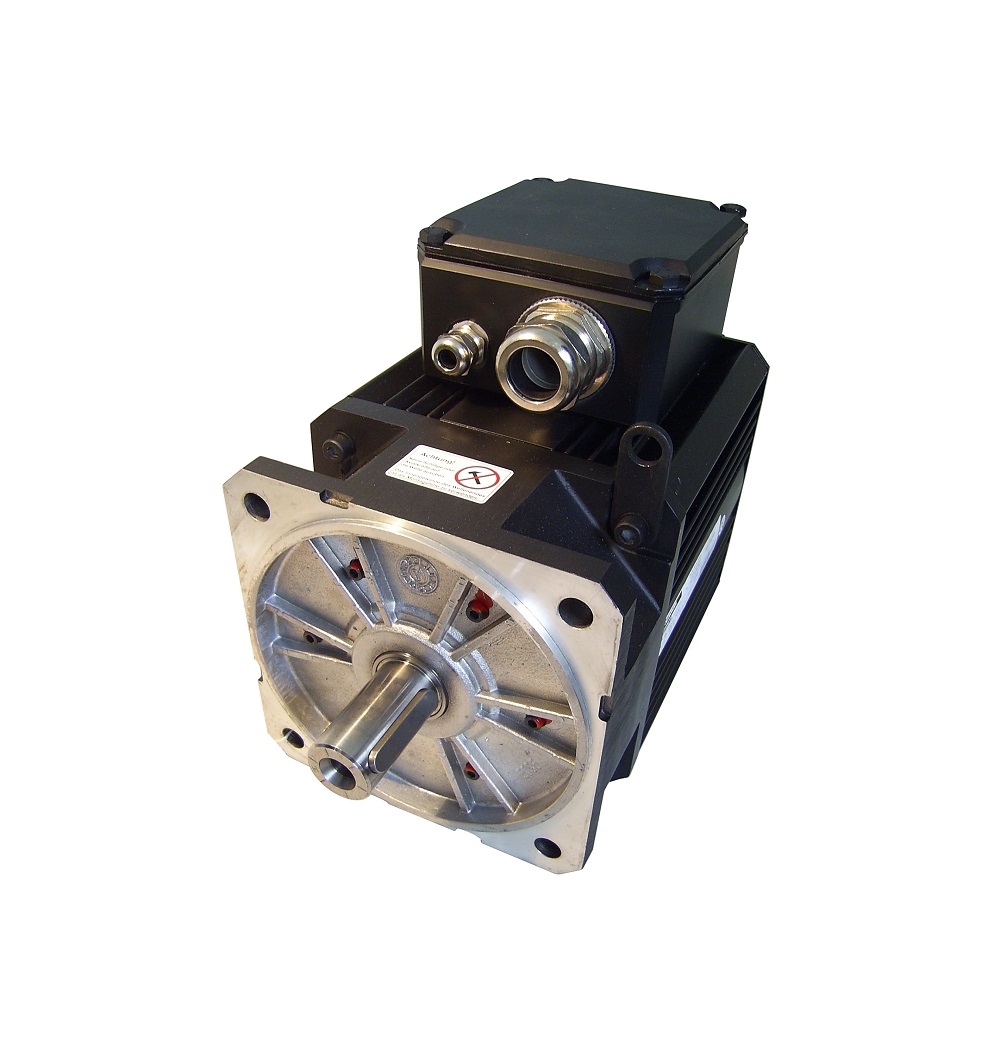

This SM100 K-3000-G-J brushless servomotor

is a 6 pole, trapezoidally wound motor made by Kollmorgen Seidel

and is fitted with Hall & Tacho feedback unit, 24V brake (G) and shaft seal (J).

The motor has a 172V winding making it suitable for use with

servo drives (e.g. 64WKS-M240/50) providing up to 240Vdc bus voltage.

The motor is rated at 25.0 Nm holding torque, 17.0 Nm rated torque at 3000rpm and 100 Nm peak,

with a torque constant of 0.65 Nm/A. Motor inertia is 74 kgcm2.

Connections are made onto terminals for power connections and connector for the feedback.

The motor flange measures 190mm square, with a 32mm shaft (keywayed),

180mm diameter locating spigot and four mounting holes on a 215mm PCD.

Overall length is 367mm and weight is 35kg.

This item is new, unused and is fully functional.

Please contact us for further details.
